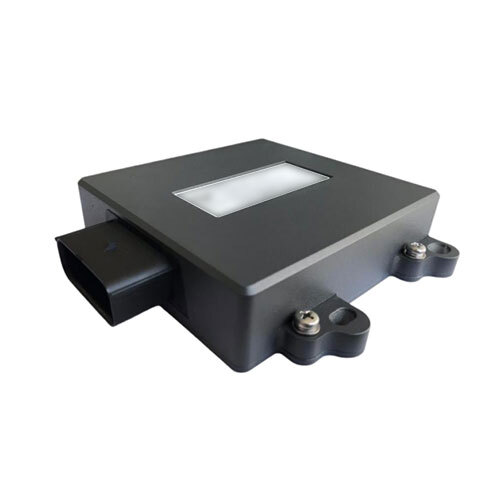

Electric vehicle communication controller（EVCC）
Features:
- Support ISO15118, DIN70121 and GB/T27930 standards
- Comparable to CP, CC and CC2 outputs
- Standard CAN interface circuit communicates with BMS
- A variety of input wake-up modes are available
- Unified Diagnostic Service (UDS) supporting ISO14229 and ISO15765 standards
- Dual CAN design, the software supports online upgrade through the OBD port of the whole vehicle, which is easy to customize and maintain.
Specifications:
- Operating voltage: 9Vdc ~ 32Vdc
- Operating temperature: -40°C ~ 85°C
- Storage temperature: -40°C ~ 105°C
- Operating humidity: 0 ~ 90%RH
- Degree of protection: IP67
- Firing rating: V-0
- Chinese standard: GB/T27930
- European standards: ISO15118、DIN70121
