HV Cable

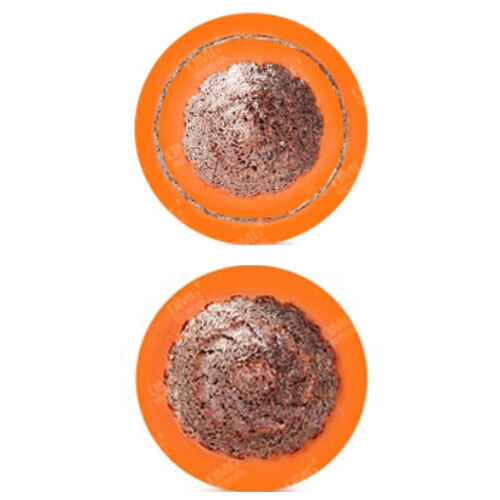

Single-core shielded high voltage cable for electric vehicles
|
Construction |
Features |
|
Conductor |
Rated temperature ：-40℃～+(125℃, 150℃) |
|
Material: Bare Copper |
Rated Voltage：AC 600V/DC 900V; AC 1000V/DC 1500V |
|
Insulation |
Short-term Aging：240h, Comply with IS0 19642 |
|
Material: XLPE |
Long-term Aging： 3000h,Comply with IS0 19642 |
|
Color：Orange |
Flame Test： Comply With IS0 19642 |
|
Shielded |
Bending Radius: 4*OD@OD﹤15mm ; 6*OD@OD≧15mm |
|
Material: Tinned Copper |
Dielectric Voltage：10kVac/5min. |
|
Sheath |
Oil Resistance：Comply with IS0 19642 |
|
Material: XLPE |
Anti-tear Performance ：>20N/mm |
|
Color: Orange |
Environmental Requirements：Compliant with RoHS 2.0 and REACH |
Single-core unshielded high voltage cable for electric vehicles
|
Construction |
Features |
|
Conductor |
Rated temperature ：-40℃～+(125℃, 150℃) |
|
Material: Bare Copper |
Rated Voltage：AC 600V/DC 900V; AC 1000V/DC 1500V |
|
Insulation |
Short-term Aging：240h, Comply with QC/T 1037-2016 standard |
|
Material: XLPE |
Long-term Aging： 3000h,Comply with QC/T 1037-2016 standard |
|
Color：Orange |
Flame Test： Comply with QC/T 1037-2016 standard |
|
Shielded |
Bending Radius: 4*OD@OD﹤15mm ; 6*OD@OD≧15mm |
|
Material: Tinned Copper |
Dielectric Voltage：5k Vac/5min. No breakdown |
|
Sheath |
Oil Resistance：Comply with QC/T 1037-2016 standard |
|
Material: XLPE |
Anti-tear Performance ：>20N/mm |
|
Color: Orange |
Environmental Requirements：Compliant with RoHS and REAC |
