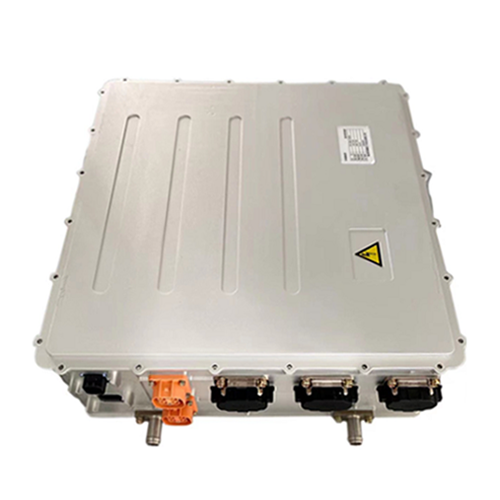

DCDC Converter
DC/DC Converter Product List |
||||||
| Seq. | Model Number | Power | Output Voltage | Input Voltage | Output Current | Cooling Method/IP Rating |
| 1 | DH-DC-6K-540S27-M | 6kW | 27.5Vdc | 400~750Vdc | 218A | Modular |
| 2 | DH-DC-6K-540S27-W | 6kW | 27.5Vdc | 400~750Vdc | 218A | Liquid/IP67 |
| 3 | DH-DC-3K-640S27-M | 3kW | 27.5Vdc | 400~900Vdc | 110A | Modular |
| 4 | DH-DC-3K-640S27-W | 3kW | 27.5Vdc | 400~900Vdc | 110A | Liquid/IP67 |
| 5 | DH-DC-3K-640S27-A | 3kW | 27.5Vdc | 400~900Vdc | 110A | Fan/IP67 |
| 6 | DH-DC-3K-540S27-W | 3kW | 27.5Vdc | 400~750Vdc | 110A | Liquid/IP67 |
| 7 | DH-DC-3K-540S27-A | 3kW | 27.5Vdc | 400~750Vdc | 110A | Fan/IP67 |
| 8 | DH-DC-3KB-540S27-M | 3kW | 27.5Vdc | 400-750Vdc | 110A | Modular |
| 9 | DH-DC-3KB-540S27-MJH | 3kW | 27.5Vdc | 400~750Vdc | 110A | Modular |
| 10 | DH-DC-3KB-380S27-M | 3kW | 27.5Vdc | 200~450Vdc | 110A | Modular |
| 11 | DH-DC-3KB-380S27-W | 3kW | 27.5Vdc | 200~450Vdc | 110A | Liquid/IP67 |
| 12 | DH-DC-3KB-380S27-A | 3kW | 27.5Vdc | 200~450Vdc | 110A | Fan/IP67 |
| 13 | DH-DC-2K5-540S14-W | 2.5kW | 13.8Vdc | 400~750Vdc | 181A | Liquid/IP67 |
| 14 | DH-DC-2K5-540S14-A | 2.5kW | 13.8Vdc | 400~750Vdc | 181A | Fan/IP67 |
| 15 | DH-DC-2K-540S14-M | 2kW | 13.8Vdc | 400~750Vdc | 145A | Modular |
| 16 | DH-DC-2K-540S14-W | 2kW | 13.8Vdc | 400~750Vdc | 145A | Liquid/IP67 |
| 17 | DH-DC-2K-540S14-A | 2kW | 13.8Vdc | 400~750Vdc | 145A | Fan/IP67 |
| 18 | DH-DC-2K-380S14-M | 2kW | 13.8Vdc | 250~450Vdc | 145A | Modular |
| 19 | DH-DC-2K-380S14-W | 2kW | 13.8Vdc | 250~450Vdc | 145A | Liquid/IP67 |
| 20 | DH-DC-2K-380S14-A | 2kW | 13.8Vdc | 250~450Vdc | 145A | Fan/IP67 |
| 21 | DH-DC-1K5-540514-M | 1.5kW | 13.8Vdc | 400~750Vdc | 109A | Modular |
| 22 | DH-DC-1K5-540S14-W | 1.5kW | 13.8Vdc | 400~750Vdc | 109A | Liquid/IP67 |
| 23 | DH-DC-1K5-540S14-A | 1.5kW | 13.8Vdc | 400~750Vdc | 109A | Fan/IP67 |
| 24 | DH-DC-1K5-380S14-M | 1.5kW | 13.8Vdc | 250~450Vdc | 109A | Modular |
| 25 | DH-DC-1K5-380S14-W | 1.5kW | 13.8Vdc | 250~450Vdc | 109A | Liquid/IP67 |
| 26 | DH-DC-300-540S24-M | 300W | 24Vdc | 200~800Vdc | 12.5A | Modular |
| 27 | DH-DC-300-540S24-N | 300W | 24Vdc | 200~800Vdc | 12.5A | Natural/IP67 |
| 28 | DH-DC-300-540S12-M | 300W | 12Vdc | 200~800Vdc | 25A | Modular |
| 29 | DH-DC-300-S40S12-N | 300W | 12Vdc | 200~800Vdc | 25A | Natural/IP67 |
