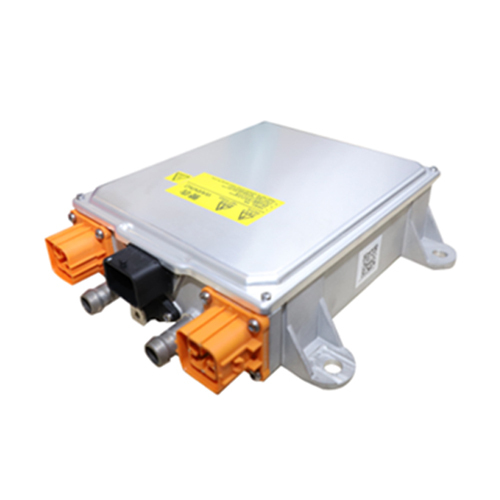

On-Board Charger Product List
|
| Seq. |
Model Number |
Power |
Output Voltage |
Input Voltage |
Output Current |
Cooling Method/IP Rating |
| 1 |
DH-OB-40K-380S640-W |
40kW |
450~750Vdc |
304~456Vac Three-phase Four-wireL~L |
80A |
Liquid/IP67 |
| 2 |
DH-OB-40K-380S540-W |
40kW |
400~650Vdc |
304~456Vac Three-phase Four-wireL~L |
85A |
Liquid/IP67 |
| 3 |
DH-OB-40K-380S380-W |
40kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
120A |
Liquid/IP67 |
| 4 |
DH-OB-40K-380BS640-W |
40kW |
450~750Vdc |
304~456Vac Three-phase Three-wireL~L |
80A |
Liquid/IP67 |
| 5 |
DH-OB-40K-380BS380-W |
40kW |
200~450Vdc |
304~456Vac Three-phase Three-wireL~L |
120A |
Liquid/IP67 |
| 6 |
DH-OB-22K-380S640-W |
22kW |
450~750Vdc |
304~456Vac Three-phase Four-wireL~L |
34A |
Liquid/IP67 |
| 7 |
DH-OB-22K-380S540-W |
22kW |
400~650Vdc |
304~456Vac Three-phase Four-wireL~L |
40A |
Liquid/IP67 |
| 8 |
DH-OB-22K-380S380-W |
22kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
60A |
Liquid/IP67 |
| 9 |
DH-OB-22K-380BS640-W |
22kW |
450~750Vdc |
304~456Vac Three-phase Three-wireL~L |
34A |
Liquid/IP67 |
| 10 |
DH-OB-22K-380BS540-W |
22kW |
400~650Vdc |
304~456Vac Three-phase Three-wireL~L |
40A |
Liquid/IP67 |
| 11 |
DH-OB-22K-380BS380-W |
22kW |
200~450Vdc |
304~456Vac Three-phase Three-wireL~L |
60A |
Liquid/IP67 |
| 12 |
DH-OB-13K-220S640-W |
13KW |
450~750Vdc |
85~265Vac |
24A |
Liquid/IP67 |
| 13 |
DH-OB-13K-220S380-W |
13KW |
200~450Vdc |
85~265Vac |
40A |
Liquid/IP67 |
| 14 |
DH-OB-11K-380S640-M |
11kW |
450~750Vdc |
304~456Vac Three-phase Four-wireL~L |
20A |
Modular |
| 15 |
DH-OB-11K-380S640-W |
11kW |
450~750Vdc |
304~456Vac Three-phase Four-wireL~L |
20A |
Liquid/IP67 |
| 16 |
DH-OB-11K-380S540-M |
11kW |
400~650Vdc |
304~456Vac Three-phase Four-wireL~L |
23A |
Modular |
| 17 |
DH-OB-11K-380S540-W |
11kW |
400~650Vdc |
304~456Vac Three-phase Four-wireL~L |
23A |
Liquid/IP67 |
| 18 |
DH-OB-11K-380S380-M |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Modular |
| 19 |
DH-OB-11K-380S380-W |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Liquid/IP67 |
| 20 |
DH-OB-B11KB-380S380-M |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Modular |
| 21 |
DH-OB-B11KB-380S380-W |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Liquid /IP67 |
| 22 |
DH-OB-6K6-220S640-M |
6.6kW |
450~750Vdc |
85~265Vac |
12A |
Modular |
| 23 |
DH-OB-6K6-220S640-W |
6.6kW |
450~750Vdc |
85~265Vac |
12A |
Liquid/IP67 |
| 24 |
DH-OB-6K6-220S540-M |
6.6kW |
400~650Vdc |
85~265Vac |
14A |
Modular |
| 25 |
DH-OB-6K6-220S540-W |
6.6kW |
400~650Vdc |
85~265Vac |
14A |
Liquid/IP67 |
| 26 |
DH-OB-6K6-220S380-M |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Modular |
| 27 |
DH-OB-6K6-220S380-W |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Liquid/IP67 |
| 28 |
DH-OB-B6K6B-220S380-M |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Modularl |
| 29 |
DH-OB-B6K6B-220S380-W |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Liquid /IP67 |
| 30 |
DH-OB-6K6B-220S640-A |
6.6kW |
450~750Vdc |
85~265Vac |
12A |
Fan/IP67 |
| 31 |
DH-OB-6K6B-220S380-A |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Fan/IP67 |
