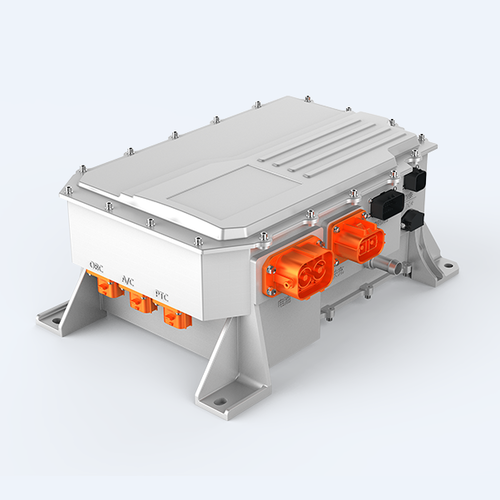

Integrated DC/DC,OBC, PDU Product List
|
| Seq. |
Model Number |
Integration Feature |
Power |
Output Voltage |
Input Voltage |
Output Current |
| 1 |
DH-DC-3KCB11KB-D14C380-M |
DC＋Bi-OBC |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 32A |
| 2 |
DH-DC-3KCB11KB-D14C380-W |
DC＋Bi-OBC |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 32A |
| 3 |
DH-DC-3KCB11KB-D14C750-M |
DC＋Bi-OBC |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 500~850Vdc |
DC/DC: 500~850Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 16A |
| 4 |
DH-DC-3KCB11KB-D14C750-W |
DC＋Bi-OBC |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 500~850Vdc |
DC/DC: 500~850Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 16A |
| 5 |
LW3HD3KCB11KB-D14C380-W |
DC＋Bi-OBC+PDU |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 32A |
| 6 |
DH-DC-3KC11KB-D14C380-M |
DC＋OBC |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 32A |
| 7 |
DH-DC-3KC11KB-D14C380-W |
DC＋OBC |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 32A |
| 8 |
LW3HD3KC11KB-D14C380-W |
DC＋OBC+PDU |
DC/DC:3kW OBC:11kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 304~456Vac |
DC/DC: 215A OBC: 32A |
| 9 |
DH-DC-2KCB6K6B-D14C380-M |
DC＋Bi-OBC |
DC/DC:2kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 20A |
| 10 |
DH-DC-2KCB6K6B-D14C380-W |
DC＋Bi-OBC |
DC/DC:2kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 20A |
| 11 |
DH-DC-3KCB6K6B-D14C750-M |
DC＋Bi-OBC |
DC/DC:3kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 500~850Vdc |
DC/DC: 500~850Vdc OBC: 85~265Vac |
DC/DC:215A OBC: 8.8A |
| 12 |
DH-DC-3KCB6K6B-D14C750-W |
DC＋Bi-OBC |
DC/DC:3kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 500~850Vdc |
DC/DC: 500~850Vdc OBC: 85~265Vac |
DC/DC:215A OBC: 8.8A |
| 13 |
LW3HD2KCB6K6B-D14C380-W |
DC＋Bi-OBC+PDU |
DC/DC:2kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 20A |
| 14 |
DH-DC-2KCB6K6B-D14C380-M |
DC＋Bi-OBC |
DC/DC:2kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 20A |
| 15 |
DH-DC-2KCB6K6B-D14C380-W |
DC＋Bi-OBC |
DC/DC:2kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 20A |
| 16 |
LW3HD2KCB6K6B-D14C380-W |
DC＋Bi-OBC+PDU |
DC/DC:2kW OBC: 6.6kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 20A |
| 17 |
DH-DC-2KCB3K3-D14C380-M |
DC＋Bi-OBC |
DC/DC:2kW OBC: 3.3kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 10A |
| 18 |
DH-DC-2KCB3K3-D14C380-W |
DC＋Bi-OBC |
DC/DC:2kW OBC: 3.3kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 10A |
| 19 |
LW3HD2KCB3K3-D14C380-W |
DC＋Bi-OBC+PDU |
DC/DC:2kW OBC: 3.3kW |
DC/DC: 13.8Vdc OBC: 200~450Vdc |
DC/DC: 250~450Vdc OBC: 85~265Vac |
DC/DC:145A OBC: 10A |
| 20 |
DH-OB-11K-380S380-M |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Modular |
| 21 |
DH-OB-11K-380S380-W |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Liquid/IP67 |
| 22 |
DH-OB-B11KB-380S380-M |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Modular |
| 23 |
DH-OB-B11KB-380S380-W |
11kW |
200~450Vdc |
304~456Vac Three-phase Four-wireL~L |
32A |
Liquid/IP67/Bidirectional |
| 24 |
DH-OB-6K6-220S640-M |
6.6kW |
450~750Vdc |
85~265Vac |
12A |
Modular |
| 25 |
DH-OB-6K6-220S640-W |
6.6kW |
450~750Vdc |
85~265Vac |
12A |
Liquid/IP67 |
| 26 |
DH-OB-6K6-220S540-M |
6.6kW |
400~650Vdc |
85~265Vac |
14A |
Modular |
| 27 |
DH-OB-6K6-220S540-W |
6.6kW |
400~650Vdc |
85~265Vac |
14A |
Liquid/IP67 |
| 28 |
DH-OB-6K6-220S380-M |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Modular |
| 29 |
DH-OB-6K6-220S380-W |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Liquid/IP67 |
| 30 |
DH-OB-B6K6B-220S380-M |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Modular |
| 31 |
DH-OB-B6K6B-220S380-W |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Liquid/IP67/Bidirectional |
| 32 |
DH-OB-6K6B-220S640-A |
6.6kW |
450~750Vdc |
85~265Vac |
12A |
Fan/IP67 |
| 33 |
DH-OB-6K6B-220S540-A |
6.6kW |
400~650Vdc |
85~265Vac |
14A |
Fan/IP67 |
| 34 |
DH-OB-6K6B-220S380-A |
6.6kW |
200~450Vdc |
85~265Vac |
20A |
Fan/IP67 |
